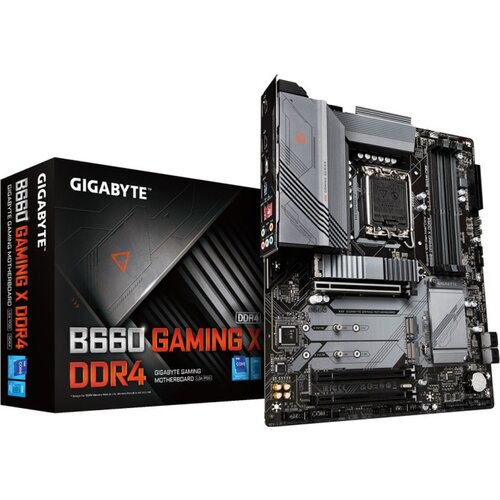

Gigabyte B660 gaming x ax DDR4, DDR4, SATA3, USB3.2Gen2, dp, wifi 6, LGA1700 atx - B660 gaming x ax DDR4
Trenutno ni ponudb za ta izdelek.
Gigabyte B660 gaming x ax DDR4, DDR4, SATA3, USB3.2Gen2, dp, wifi 6, LGA1700 atx - B660 gaming x ax DDR4
Podobni izdelki iz Osnovne (matične) plošče
Opis in lastnosti
PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: INTEL B660
POMNILNIK:
4 x DDR4 DIMM ECC/nonECC (4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 /
2800 / 2666 / 2400 / 2133MHz) do skupno 128GB kapacitete, dual channel in XMP podpora, Support for nonECC / ECC
Unbuffered DIMM (operate in nonECC mode)
GRAFIKA: DA preko CPU
RAID: RAID 0, RAID 1, RAID 5, and RAID 10
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0/3.0 x16
2 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN chip + WiFi 6E RZ608 (MT7921K) + BLUETOOTH 5.2
ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1channel)
NOTRANJI PRIKLJUČKI:
1 x 24pin ATX main power connector
1 x 8pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB TypeC® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0 module only)
1 x serial port header
1 x QFlash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2 TypeA port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI 2.0 port
1 x RJ45 port
6 x audio jacks
DODATNO:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for QFlash Plus
Support for QFlash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/B660GAMINGXAXDDR4rev10#kf
Garancija: 3 leta
Lastnosti
Znamka | Gigabyte |
