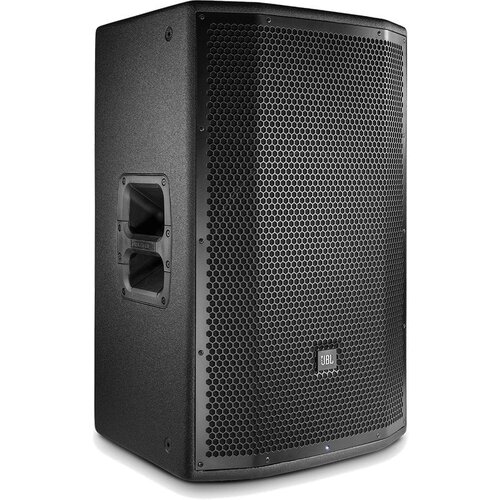

The 2way 15" offers the perfect balance between size and performance. The PRX815W truly is an exception; it's small, light weight, versatile and powerful with remote WiFi control of onboard DSP EQ parameters. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ's when portability is key, or when hung by the suspension points, an exceptional lightduty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815W delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX800 subwoofer the system becomes an efficient, fullrange sound system. The PRX815W is comprised of 15" 275G Differential Drive woofer, a 2408H2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90 by 50 horn, all driven by 1500 watt ClassD power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, crossover functionality, dynamic limiting and discrete component optimization. All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dentresistant 16 gauge steel and handles are made from lightweight glassfilled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yieldstrength of 1000 lbs. each. The amplifier input panel offers XLR or inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob. Features Builtin WiFi for wireless control of your system from anywhere in the venue Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8band parametric EQ and up to 50ms of speaker delay to finetune your sound Classleading 1500watt amplifier delivers ample power to fill your venue JBL Differential Drive transducers for higher SPL in a lightweight design Nextgeneration JBL neodymium compression drivers Redesigned Crown input technology, including XLR, 1/4" and RCA inputs plus XLR loopthrough Intelligent variablespeed fan activates only when needed to reduce noise Updated tuning delivers flat frequency response and smooth offaxis behavior Durable wooden cabinets, tourproven DuraFlex finish and dentresistant 16gauge grilles Universal power supply for worldwide compatibility dbx Type IV limiting ensures clear, accurate sound at high volumes Brutal testing regimenincluding the famous JBL 100hour power testensures reliable performance Specs System Type Self Powered 15", twoway, bassreflex Maximum SPL Normal: 137 dB Boost: 137 dB Frequency Range (10 dB) Main: 5020k Monitor: 4620k Frequency Response (3 dB) Main: 5620k Monitor: 5619k Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced) Signal indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using WiFi and PRX Connect application Dynamic Control (Input) dbx Type IV limiter circuit Crossover Frequency 2.0 kHz Design Highly efficient ClassD amplifier Power Rating 1500W (750W x 2) AC Power Input 100V 240V 50/60 Hz LF Driver 1 x JBL 275G (15 in) woofer HF Driver 1 x JBL 2408H2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver Coverage Pattern 90 x 50 nominal Directivity Index... Frekvenčni razpon : 50 Hz 20 kHz AUX IN : Da Država izvora : Kitajska Zaslon : Ne Moč RMS (Watt) : 750.0 Napajanje : 240V Mp3 / linijski vhod : Ne Izhodi : XLR Bluetooth : Ne Visokotonski zvočnik : 1,5" WiFi : Da Tip : 2 Bandwidth Nizkotonski zvočnik : 15" Teža : 21 kg Vhodi : XLR/TRS kombi Širina (cm) : 44.6 Moč RMS : 750 W Vhodi : RCA Višina (cm) : 70.1 Barva : Črna Varianta : PRX815W Globina (cm) : 35.9 Moč (Watt) : 1500.0 Vhod za mikrofon : Da EQ : Da Ponujena konfiguracija : Standardna ponudba Vsebina paketa : Power Cable Vsebina paketa : Manual Adapter priložen : Ne USB : Ne Raven zvočnega tlaka SPL (dB) : 137.0 Srednjetonec : Ne
