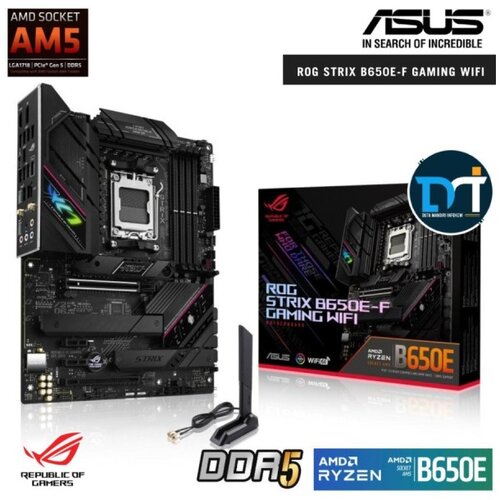

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM ECC and NonECC, Unbuffered Memory 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora
GRAFIKA: DA preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 5.0 x16
1 x PCI Express 3.0/4.0 x4
2 x PCI Express 3.0/4.0 x1
MREŽNA KARTICA: Intel 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) LANGuard + WiFi 6E 2.4/5GHz 2x2 WiFi 6E (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2
ZVOČNA KARTICA: ROG SupremeFX 7.1 Audio codec ALC4080 High Definition Audio (2/4/5.1/7.1channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
1 x 8pin +12V Power connector
1 x 4pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB TypeC®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 203 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COMDEBUGheader
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x USB TypeC®)
3 x USB 3.2 Gen 2 ports (2 x TypeA + 1 x USB TypeC®)
4 x USB 3.2 Gen 1 ports (4 x TypeA)
4 x USB 2.0 ports (4 x TypeA)
1 x DisplayPort
1 x HDMI® port
1 x WiFi Module
1 x Intel® I225V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
DODATNO:

Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS QDesign
M.2 QLatch
PCIe Slot QRelease
QLED
QDIMM
QSlot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Premounted I/O shield
SafeSlot
SafeDIMM
AURA Sync
AURA RGB header
Addressable Gen 2 headers
ROG Exclusive Software
GameFirst VI
ROG CPUZ
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
Antivirus software
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60 days free trial)
AURA Creator
AURA Sync
Fan Xpert 4
Power Saving
TwoWay AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rogstrix/rogstrixb650efgamingwifimodel/

Garancija: 36 mesecev
